高品质美国CN2确实是目前美国VPS商家当中比较稳定的商家,支持支付宝付款购买,VPS价格便宜、性能好。从2017年8月上线洛杉矶CN2直连机房VPS后,目前高品质美国CN2主打的就是CN2直连机房产品,确实线路品质也不错,在价格和流量方面都比较充足,无论是建站还是其他用途使用基本都能满足。
说到高品质美国CN2CN2直连VPS,大家知道购买过程当中有两个机房可以选择,DC3、DC8,蜗牛之前在浅谈高品质美国CN2VPS如何选择DC8/DC3/DC2机房对两个机房做个介绍,这里大家知道DC3是指洛杉矶QuadraNet机房的CN2直连线路,DC8指的是洛杉矶Zenlayer(C3)机房,就可以了,选择的时候根据自己需要进行选择即可。
一、实惠方案
目前高品质美国CN2CN2直连VPS有六个方案(当然另外还有KVM多机房方案,是支持切换到DC3、DC8两个机房的),配置从512M内存到16G内存。只有系统方面可以选择安装Centos,Debian,Ubuntu,其中Centos有自带开启BBR的系统可以选择。
|
|
|
|
|
二、机房测评
蜗牛目前手上有一台高品质美国CN2洛杉矶DC8 CN2直连机房测VPS,下面就对高品质美国CN2洛杉矶C3机房CN2直连线路做一个简单的测评。
1、服务器到国内电信、联通、移动速度。
---------------------------------------------------------------------- CPU model : QEMU Virtual CPU version (cpu64-rhel6) Number of cores : 1 CPU frequency : 2599.984 MHz Total size of Disk : 11.4 GB (3.8 GB Used) Total amount of Mem : 503 MB (118 MB Used) Total amount of Swap : 899 MB (92 MB Used) System uptime : 66 days 13 hour 4 min Load average : 0.00, 0.00, 0.00 OS : CentOS 7.3.1611 Arch : x86_64 (64 Bit) Kernel : 4.10.4-1.el7.elrepo.x86_64 Virt : kvm ---------------------------------------------------------------------- I/O speed( 32M ) : 111 MB/s I/O speed( 256M ) : 161 MB/s I/O speed( 2G ) : 610 MB/s Average I/O speed : 294.0 MB/s ---------------------------------------------------------------------- Node Name Upload Speed Download Speed Latency Normal Node 656.15 Mbit/s 673.92 Mbit/s 5.765 ms Xiangyang CT 58.24 Mbit/s 59.73 Mbit/s 318.314 ms Kunming CT 16.09 Mbit/s 50.31 Mbit/s 630.701 ms Chengdu CT 98.83 Mbit/s 178.48 Mbit/s 180.88 ms Shenyang CU 9.02 Mbit/s 55.98 Mbit/s 279.346 ms Xi'an CU 61.24 Mbit/s 51.06 Mbit/s 371.146 ms Shanghai CU 91.83 Mbit/s 133.16 Mbit/s 180.909 ms Chongqing CU 67.24 Mbit/s 29.95 Mbit/s 216.574 ms Xi'an CM 65.90 Mbit/s 8.02 Mbit/s 198.152 ms Shandong CM 8.70 Mbit/s 18.23 Mbit/s 190.491 ms Chengdu CM 52.25 Mbit/s 4.73 Mbit/s 201.491 ms ---------------------------------------------------------------------- Total time : 4 min 28 sec Current time : 2018-04-15 12:44:24 Finished! ----------------------------------------------------------------------
2、国内电信、联通、移动回程Ping。
------------------------------------------- 【四川 电信】 - 125.64.38.178 20 packets transmitted, 20 received, 0% packet loss, time 19021ms rtt min/avg/max/mdev = 184.739/185.023/187.436/0.780 ms ------------------------------------------- 【北京 电信】 - 106.120.243.142 20 packets transmitted, 20 received, 0% packet loss, time 19003ms rtt min/avg/max/mdev = 151.029/151.150/151.381/0.290 ms ------------------------------------------- 【北京 联通】 - 103.254.70.52 20 packets transmitted, 20 received, 0% packet loss, time 19022ms rtt min/avg/max/mdev = 156.689/192.691/227.243/23.283 ms ------------------------------------------- 【北京 移动】 - 218.205.152.14 20 packets transmitted, 19 received, 5% packet loss, time 19063ms rtt min/avg/max/mdev = 174.941/175.460/175.844/0.384 ms ------------------------------------------- 【上海 移动】 - 117.131.14.202 20 packets transmitted, 15 received, 25% packet loss, time 19123ms rtt min/avg/max/mdev = 154.021/157.855/164.398/2.974 ms ------------------------------------------- 【上海 电信】 - 211.144.205.58 20 packets transmitted, 9 received, 55% packet loss, time 19272ms rtt min/avg/max/mdev = 202.531/205.476/209.776/2.907 ms ------------------------------------------- 【上海 联通】 - 220.196.42.133 20 packets transmitted, 20 received, 0% packet loss, time 19026ms rtt min/avg/max/mdev = 179.103/184.937/197.051/5.901 ms ------------------------------------------- 【广东 电信】 - 121.11.69.135 20 packets transmitted, 0 received, 100% packet loss, time 19475ms ------------------------------------------- 【广东 联通】 - 27.40.0.30 20 packets transmitted, 20 received, 0% packet loss, time 19004ms rtt min/avg/max/mdev = 203.895/207.700/214.031/3.233 ms ------------------------------------------- 【广东 移动】 - 211.139.129.222 20 packets transmitted, 13 received, 35% packet loss, time 19228ms rtt min/avg/max/mdev = 162.443/163.884/165.619/1.022 ms ------------------------------------------- min:最低延迟 avg:平均延迟 max:最高延迟 mdev:平均偏差 -------------------------------------------
3、全球下载速度测试
---------------------------------------------------------------------- CPU model : QEMU Virtual CPU version (cpu64-rhel6) Number of cores : 1 CPU frequency : 2599.984 MHz Total size of Disk : 11.4 GB (3.8 GB Used) Total amount of Mem : 503 MB (121 MB Used) Total amount of Swap : 899 MB (92 MB Used) System uptime : 66 days, 13 hour 59 min Load average : 0.00, 0.00, 0.00 OS : CentOS 7.3.1611 Arch : x86_64 (64 Bit) Kernel : 4.10.4-1.el7.elrepo.x86_64 ---------------------------------------------------------------------- I/O speed(1st run) : 425 MB/s I/O speed(2nd run) : 483 MB/s I/O speed(3rd run) : 563 MB/s Average I/O speed : 490.3 MB/s ---------------------------------------------------------------------- Node Name IPv4 address Download Speed CacheFly 205.234.175.175 105MB/s Linode, Tokyo, JP 106.187.96.148 548KB/s Linode, Singapore, SG 139.162.23.4 6.39MB/s Linode, London, UK 176.58.107.39 7.65MB/s Linode, Frankfurt, DE 139.162.130.8 9.45MB/s Linode, Fremont, CA 50.116.14.9 70.8MB/s Softlayer, Dallas, TX 173.192.68.18 35.3MB/s Softlayer, Seattle, WA 67.228.112.250 10.9MB/s Softlayer, Frankfurt, DE 159.122.69.4 2.25MB/s Softlayer, Singapore, SG 119.81.28.170 5.39MB/s Softlayer, HongKong, CN 119.81.130.170 5.02MB/s
4、Speedtest测试服务器上传和下载带宽结果。
---------------------------------------------------------------------- Hosted by Speedtest.net (Los Angeles, CA) [2.06 km]: 2.783 ms 上传 : 448.59 Mbit/s 下载 : 421.84 Mbit/s ----------------------------------------------------------------------
5、硬盘读写速度测试。
[root@host ~]# dd if=/dev/zero of=test bs=64k count=4k oflag=dsync 4096+0 records in 4096+0 records out 268435456 bytes (268 MB) copied, 5.19045 s, 51.7 MB/s [root@host ~]# dd if=/dev/zero of=test bs=8k count=256k conv=fdatasync 262144+0 records in 262144+0 records out 2147483648 bytes (2.1 GB) copied, 4.54623 s, 472 MB/s

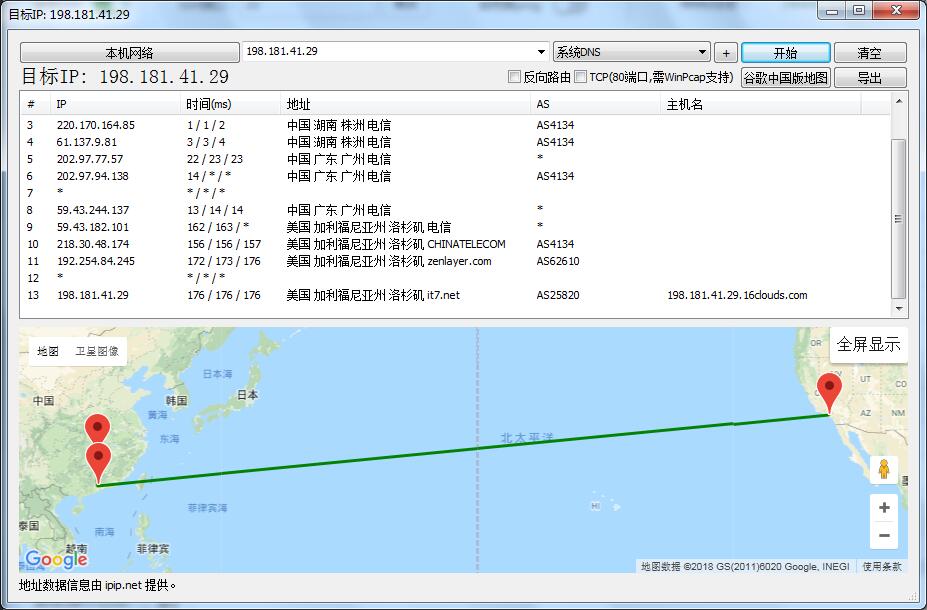

6、路由追踪测试。
湖南电信路由追踪
成都腾讯云
0. CN 140.143.93.0 Loss% Snt Last Avg Best Wrst StDev AS Name PTR 1 100.88.215.130 0.0% 20 10.4 2.8 0.9 10.4 2.3 - 2 100.88.243.242 0.0% 20 1.1 1.1 0.8 1.4 0.0 - 3 10.196.70.37 0.0% 20 0.4 0.5 0.4 2.0 0.2 - 4 10.200.5.113 0.0% 20 1.9 2.4 1.7 4.2 0.6 - 5 10.196.0.78 0.0% 20 1.3 1.4 1.3 2.3 0.0 - 6 CN 182.150.16.101 0.0% 20 3.8 4.9 3.5 11.7 2.2 4134 CN CHINANET-BACKBONE 182.150.16.101 7 CN 125.64.29.157 0.0% 20 2.0 2.1 1.8 3.0 0.0 38283 CN CHINANET-SCIDC-AP 125.64.29.157 8 CN 182.140.220.249 0.0% 20 8.8 5.2 2.0 8.8 1.9 38283 CN CHINANET-SCIDC-AP 182.140.220.249 9 CN 202.97.36.225 0.0% 20 38.4 37.0 35.3 38.9 0.9 4134 CN CHINANET-BACKBONE 202.97.36.225 10 CN 202.97.94.150 85.0% 20 32.0 32.1 32.0 32.3 0.0 4134 CN CHINANET-BACKBONE 202.97.94.150 11 CN 202.97.94.114 70.0% 20 33.1 33.5 33.0 35.9 1.0 4134 CN CHINANET-BACKBONE 202.97.94.114 12 CN 59.43.244.141 0.0% 20 32.7 35.7 32.7 80.1 10.6 - 13 CN 59.43.182.105 0.0% 20 180.2 180.8 180.1 186.2 1.4 - 14 CN 218.30.48.174 0.0% 20 179.5 180.2 179.3 192.3 2.8 4134 CN CHINANET-BACKBONE 218.30.48.174 15 US 192.254.84.245 0.0% 20 190.8 181.7 180.3 190.8 2.7 62610 US JNET 192.254.84.245 16 ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 17 US 198.181.41.29 0.0% 20 179.7 180.0 179.7 181.9 0.3 25820 CA *NET 198.181.41.29.16clouds.com
广州腾讯云
0. CN 118.89.29.0 Loss% Snt Last Avg Best Wrst StDev AS Name PTR 1. 10.59.211.129 0.0% 20 1.0 1.4 1.0 6.6 1.2 - 2. 10.59.247.232 0.0% 20 1.1 0.9 0.7 1.4 0.2 - 3. 10.200.135.229 0.0% 20 1.4 0.5 0.4 1.4 0.2 - 4. 10.200.16.169 0.0% 20 1.7 2.5 1.5 18.9 3.9 - 5. CN 14.18.199.78 0.0% 20 1.0 1.0 0.9 1.3 0.1 58466 CN CT-GUANGZHOU-IDC 14.18.199.78 6. CN 14.18.199.89 20.0% 20 3.5 43.3 3.1 636.3 158.1 58466 CN CT-GUANGZHOU-IDC 14.18.199.89 7. CN 113.96.7.34 0.0% 20 10.0 5.7 2.5 10.0 2.4 58466 CN CT-GUANGZHOU-IDC 113.96.7.34 8. CN 113.108.208.225 0.0% 20 6.0 5.6 3.1 16.5 2.7 58466 CN CT-GUANGZHOU-IDC 113.108.208.225 9. CN 202.97.94.142 70.0% 20 11.8 6.7 4.1 11.8 3.9 4134 CN CHINANET-BACKBONE 202.97.94.142 10. CN 202.97.94.118 90.0% 20 3.4 3.4 3.4 3.4 0.0 4134 CN CHINANET-BACKBONE 202.97.94.118 11. CN 59.43.244.141 0.0% 20 5.0 8.8 4.9 67.2 13.9 - 12. CN 59.43.182.101 5.0% 20 158.1 158.1 158.0 158.1 0.0 - 13. CN 218.30.48.242 0.0% 20 158.1 158.2 158.0 159.3 0.3 4134 CN CHINANET-BACKBONE 218.30.48.242 14. US 192.254.84.245 0.0% 20 149.9 150.3 149.6 152.8 0.7 62610 US JNET 192.254.84.245 15. ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 16. US 198.181.41.29 5.0% 20 149.7 149.7 149.6 150.0 0.1 25820 CA *NET 198.181.41.29.16clouds.com
北京阿里云
0. CN 101.200.192.0 Loss% Snt Last Avg Best Wrst StDev AS Name PTR 1. ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 2. US 11.220.136.109 0.0% 20 2.4 2.8 1.8 6.0 1.1 - 3. US 11.220.136.54 0.0% 20 0.7 26.4 0.7 111.2 30.3 - 4. CN 116.251.105.69 0.0% 20 2.5 2.1 1.0 3.1 0.8 45102 CN CNNIC-ALIBABA-CN-NET-AP 116.251.105.69 5. CN 116.251.112.209 0.0% 20 1.6 3.0 1.6 28.2 5.9 45102 CN CNNIC-ALIBABA-CN-NET-AP 116.251.112.209 6. CN 61.49.143.245 85.0% 20 2.2 2.2 2.1 2.4 0.1 4808 CN CHINA169-BJ 61.49.143.245 7. CN 61.148.153.117 0.0% 20 4.7 4.6 2.8 6.7 1.3 4808 CN CHINA169-BJ 61.148.153.117 8. CN 202.96.12.77 0.0% 20 2.8 6.2 2.6 17.0 5.3 4808 CN CHINA169-BJ 202.96.12.77 9. CN 219.158.5.146 5.0% 20 4.9 7.4 3.9 11.4 2.1 4837 CN CHINA169-BACKBONE 219.158.5.146 10. CN 219.158.3.50 0.0% 20 6.3 8.8 4.5 17.7 3.5 4837 CN CHINA169-BACKBONE 219.158.3.50 11. CN 219.158.104.18 0.0% 20 160.8 161.4 160.7 169.1 1.9 4837 CN CHINA169-BACKBONE 219.158.104.18 12. US 199.102.95.5 0.0% 20 156.0 156.3 156.0 157.4 0.4 19174 US AS19174 199.102.95.5 13. US 192.254.84.85 0.0% 20 163.1 166.2 162.2 180.9 4.7 62610 US JNET 192.254.84.85 14. US 192.254.84.247 0.0% 20 163.1 163.5 162.3 166.2 1.0 62610 US JNET 192.254.84.247 15. ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 16. US 198.181.41.29 5.0% 20 161.3 164.4 161.0 183.3 5.9 25820 CA *NET 198.181.41.29.16clouds.com
北京腾讯云
0. CN 123.207.145.0 Loss% Snt Last Avg Best Wrst StDev AS Name PTR 1 10.53.211.129 0.0% 20 10.1 11.4 2.5 36.5 9.3 - 2 10.53.247.232 0.0% 20 31.6 51.9 31.6 56.7 5.1 - 3 10.196.50.189 80.0% 20 0.7 0.7 0.6 0.7 0.0 - 4 10.196.1.89 0.0% 20 1.1 1.6 1.0 4.2 0.6 - 5 CN 123.150.32.125 95.0% 20 997.7 997.7 997.7 997.7 0.0 17638 CN CHINATELECOM-TJ-AP 123.150.32.125 6 CN 221.238.7.145 0.0% 20 2.6 2.4 2.3 2.9 0.0 17638 CN CHINATELECOM-TJ-AP 221.238.7.145 7 CN 219.150.37.105 0.0% 20 4.4 4.1 1.6 10.8 1.7 17638 CN CHINATELECOM-TJ-AP 219.150.37.105 8 CN 202.97.34.13 0.0% 20 37.2 38.6 37.0 40.3 1.0 4134 CN CHINANET-BACKBONE 202.97.34.13 9 CN 202.97.50.222 45.0% 20 37.5 41.8 37.4 85.0 14.3 4134 CN CHINANET-BACKBONE 202.97.50.222 10 CN 202.97.90.57 0.0% 20 39.3 39.7 38.0 41.9 1.0 4134 CN CHINANET-BACKBONE 202.97.90.57 11 CN 59.43.244.117 0.0% 20 30.5 30.7 30.5 33.1 0.6 - 12 CN 59.43.189.34 0.0% 20 164.9 165.0 164.8 166.1 0.3 - 13 CN 59.43.182.58 0.0% 20 158.5 159.0 158.4 164.4 1.3 - 14 CN 218.30.48.174 0.0% 20 160.2 160.5 160.2 162.4 0.4 4134 CN CHINANET-BACKBONE 218.30.48.174 15 US 192.254.84.245 0.0% 20 178.8 179.3 178.7 181.2 0.4 62610 US JNET 192.254.84.245 16 ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 17 US 198.181.41.29 0.0% 20 165.9 165.9 165.7 166.1 0.0 25820 CA *NET 198.181.41.29.16clouds.com
江苏电信
0. CN 222.186.161.0 Loss% Snt Last Avg Best Wrst StDev AS Name PTR 1 CN 222.186.161.1 0.0% 20 2.7 6.3 2.7 22.8 5.8 23650 CN CHINANET-JS-AP 222.186.161.1 2 10.10.10.1 0.0% 20 52.6 37.8 5.3 53.0 19.2 - 3 ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 4 CN 58.217.45.29 0.0% 20 1.0 1.1 0.9 2.3 0.2 4134 CN CHINANET-BACKBONE 58.217.45.29 5 CN 58.217.20.65 0.0% 20 1.7 1.9 1.7 2.0 0.0 4134 CN CHINANET-BACKBONE 58.217.20.65 6 CN 61.160.134.57 0.0% 20 4.9 5.1 2.9 7.1 0.9 23650 CN CHINANET-JS-AP 61.160.134.57 7 CN 202.97.92.29 0.0% 20 9.9 9.5 7.4 15.5 1.6 4134 CN CHINANET-BACKBONE 202.97.92.29 8 CN 202.97.24.250 25.0% 20 7.2 7.3 7.2 7.4 0.0 4134 CN CHINANET-BACKBONE 202.97.24.250 9 CN 202.97.91.34 0.0% 20 7.7 9.4 7.6 11.5 1.0 4134 CN CHINANET-BACKBONE 202.97.91.34 10 CN 59.43.244.117 0.0% 20 13.9 8.0 7.5 13.9 1.5 - 11 CN 59.43.189.34 0.0% 20 134.4 134.8 134.3 137.2 0.5 - 12 CN 59.43.189.14 0.0% 20 135.7 136.0 135.5 139.8 1.1 - 13 CN 218.30.48.174 0.0% 20 135.3 135.8 135.1 141.9 1.5 4134 CN CHINANET-BACKBONE 218.30.48.174 14 US 192.254.84.245 0.0% 20 138.9 139.1 138.5 141.3 0.3 62610 US JNET 192.254.84.245 15 ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 16 US 198.181.41.29 0.0% 20 134.4 134.8 134.2 142.2 1.7 25820 CA *NET 198.181.41.29.16clouds.com
上海腾讯云
0. CN 123.206.200.0 Loss% Snt Last Avg Best Wrst StDev AS Name PTR 1 10.108.81.1 0.0% 20 0.9 1.0 0.9 1.1 0.0 - 2 10.108.255.104 0.0% 20 4.8 1.4 0.7 4.8 1.1 - 3 10.200.242.57 0.0% 20 1.3 1.3 1.0 2.7 0.2 - 4 CN 182.254.127.120 0.0% 20 3.6 3.5 3.4 3.6 0.0 45090 CN CNNIC-TENCENT-NET-AP 182.254.127.120 5 CN 101.226.242.29 0.0% 20 4.0 3.9 3.7 4.4 0.0 4812 CN CHINANET-SH-AP 101.226.242.29 6 CN 101.95.225.89 80.0% 20 2.9 2.7 2.6 2.9 0.0 4812 CN CHINANET-SH-AP 101.95.225.89 7 CN 101.95.207.17 0.0% 20 4.2 4.4 4.0 6.1 0.5 4812 CN CHINANET-SH-AP 101.95.207.17 8 CN 101.95.120.154 0.0% 20 4.0 6.6 4.0 16.3 3.0 4812 CN CHINANET-SH-AP 101.95.120.154 9 CN 202.97.94.237 0.0% 20 5.9 6.9 5.3 13.9 1.7 4134 CN CHINANET-BACKBONE 202.97.94.237 10 CN 202.97.90.29 0.0% 20 9.0 8.0 5.7 13.1 1.7 4134 CN CHINANET-BACKBONE 202.97.90.29 11 CN 59.43.244.117 0.0% 20 3.5 3.9 3.5 7.0 0.9 - 12 CN 59.43.189.34 0.0% 20 132.6 131.3 130.9 132.6 0.3 - 13 CN 59.43.182.58 0.0% 20 131.3 131.4 131.1 132.3 0.0 - 14 CN 218.30.48.174 0.0% 20 132.9 133.0 132.8 133.3 0.0 4134 CN CHINANET-BACKBONE 218.30.48.174 15 US 192.254.84.245 0.0% 20 133.5 133.9 133.2 135.3 0.0 62610 US JNET 192.254.84.245 16 ??? 100.0 20 0.0 0.0 0.0 0.0 0.0 - 17 US 198.181.41.29 0.0% 20 132.3 133.4 132.2 138.8 2.1 25820 CA *NET 198.181.41.29.16clouds.com
7、回程路由追踪。
===测试 [广州电信(天翼云)] 的回程路由=== Start: Sun Apr 15 13:50:07 2018 HOST: host.localdomain Loss% Snt Last Avg Best Wrst StDev 1.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0 2.|-- te-2-0-6.cr2.lax2.us.zenl 0.0% 10 2.5 3.1 2.0 8.0 1.6 3.|-- 192.254.84.244 0.0% 10 11.4 6.4 1.1 24.1 7.4 4.|-- 218.30.48.241 0.0% 10 1.3 1.3 1.1 1.4 0.0 5.|-- 59.43.182.106 0.0% 10 160.4 160.4 160.4 160.5 0.0 6.|-- 59.43.244.142 60.0% 10 153.0 153.0 153.0 153.1 0.0 7.|-- 202.97.91.138 20.0% 10 162.7 162.8 161.2 164.5 1.0 8.|-- 202.97.94.121 0.0% 10 156.6 158.1 155.2 161.7 2.1 9.|-- 183.61.221.49 0.0% 10 154.4 154.5 154.4 154.8 0.0 10.|-- 183.56.128.6 0.0% 10 164.6 164.2 163.9 164.9 0.0 11.|-- 14.215.116.1 0.0% 10 162.9 163.4 162.7 166.1 0.9 ===测试 [上海电信(天翼云)] 的回程路由=== Start: Sun Apr 15 13:50:25 2018 HOST: host.localdomain Loss% Snt Last Avg Best Wrst StDev 1.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0 2.|-- te-2-0-6.cr2.lax2.us.zenl 0.0% 10 2.8 3.0 1.9 5.7 0.9 3.|-- 192.254.84.244 0.0% 10 1.1 2.3 0.9 7.7 2.4 4.|-- 218.30.48.241 0.0% 10 1.3 1.3 1.0 1.5 0.0 5.|-- 59.43.248.130 0.0% 10 9.3 9.4 9.1 10.3 0.0 6.|-- 59.43.182.182 0.0% 10 127.2 130.2 127.2 143.2 6.2 7.|-- 59.43.244.122 30.0% 10 154.8 132.5 128.0 154.8 9.9 8.|-- 202.97.33.153 0.0% 10 127.8 127.8 127.7 128.0 0.0 9.|-- 202.97.94.238 0.0% 10 128.3 132.2 128.3 135.6 2.3 10.|-- 61.152.86.41 0.0% 10 130.2 130.8 129.1 132.7 0.9 11.|-- 124.74.166.18 60.0% 10 130.0 130.0 129.9 130.3 0.0 12.|-- 101.95.225.158 0.0% 10 129.6 129.5 129.4 129.6 0.0 13.|-- 101.227.255.45 0.0% 10 129.0 129.0 129.0 129.1 0.0 ===测试 [厦门电信CN2] 的回程路由=== Start: Sun Apr 15 13:50:58 2018 HOST: host.localdomain Loss% Snt Last Avg Best Wrst StDev 1.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0 2.|-- te-2-0-6.cr2.lax2.us.zenl 0.0% 10 2.2 2.6 1.7 5.8 1.1 3.|-- 192.254.84.244 0.0% 10 1.1 2.7 0.9 9.5 2.5 4.|-- 218.30.48.241 0.0% 10 1.2 1.3 1.2 1.5 0.0 5.|-- 59.43.182.106 0.0% 10 163.1 166.1 160.3 214.4 17.0 6.|-- 59.43.187.145 80.0% 10 162.2 162.2 162.1 162.2 0.0 7.|-- 59.43.130.161 0.0% 10 201.9 170.7 162.5 203.4 16.9 8.|-- 59.43.98.210 0.0% 10 164.9 164.9 164.9 165.0 0.0 9.|-- 27.148.195.54 0.0% 10 158.3 158.4 158.2 158.7 0.0 10.|-- 110.80.143.170 0.0% 10 162.7 161.6 160.7 165.2 1.2 11.|-- 117.25.156.126 30.0% 10 161.4 162.2 161.2 165.4 1.2 12.|-- 117.25.141.150 0.0% 10 161.6 164.2 160.4 173.5 5.1 13.|-- 117.28.254.129 0.0% 10 1141. 387.1 174.9 1141. 342.9 ===测试 [重庆联通] 的回程路由=== Start: Sun Apr 15 13:51:15 2018 HOST: host.localdomain Loss% Snt Last Avg Best Wrst StDev 1.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0 2.|-- te-2-0-6.cr2.lax2.us.zenl 0.0% 10 2.0 3.0 2.0 6.1 0.9 3.|-- 192.254.84.244 0.0% 10 0.9 1.1 0.9 1.2 0.0 4.|-- 192.254.81.49 0.0% 10 1.4 1.4 1.1 1.9 0.0 5.|-- 192.254.84.86 0.0% 10 1.0 1.1 0.9 1.3 0.0 6.|-- 199.102.95.6 0.0% 10 6.9 3.4 0.7 6.9 2.2 7.|-- 219.158.104.9 0.0% 10 169.6 163.3 158.2 169.6 4.1 8.|-- 219.158.3.137 0.0% 10 161.8 162.4 156.5 169.9 4.3 9.|-- 219.158.5.153 0.0% 10 165.8 165.5 161.4 173.9 3.6 10.|-- 219.158.12.70 0.0% 10 200.2 196.0 188.9 206.1 5.8 11.|-- 113.207.25.138 0.0% 10 198.6 189.6 184.4 198.6 5.0 12.|-- 58.144.255.26 20.0% 10 204.9 194.5 189.0 204.9 5.9 13.|-- 113.207.32.65 0.0% 10 196.7 203.0 189.4 220.9 8.9 ===测试 [上海移动] 的回程路由=== Start: Sun Apr 15 13:51:32 2018 HOST: host.localdomain Loss% Snt Last Avg Best Wrst StDev 1.|-- ??? 100.0 10 0.0 0.0 0.0 0.0 0.0 2.|-- te-2-0-6.cr2.lax2.us.zenl 0.0% 10 2.8 3.0 2.0 6.1 1.2 3.|-- 192.254.84.246 0.0% 10 4.1 1.6 0.8 4.1 1.2 4.|-- ae8.cr1-lax2.ip4.gtt.net 0.0% 10 0.5 1.8 0.5 11.1 3.2 5.|-- xe-7-2-1.cr1-lax1.ip4.gtt 0.0% 10 0.6 0.6 0.5 0.7 0.0 6.|-- ip4.gtt.net 0.0% 10 1.2 1.5 0.9 3.4 0.7 7.|-- 223.120.6.217 0.0% 10 1.3 1.2 0.9 1.9 0.0 8.|-- 223.120.12.18 10.0% 10 196.7 181.2 176.3 196.7 7.0 9.|-- 221.183.55.50 0.0% 10 180.7 181.3 179.5 191.1 3.5 10.|-- 221.183.25.193 10.0% 10 179.5 192.3 179.5 253.4 24.9 11.|-- 221.183.23.37 0.0% 10 157.1 153.2 152.0 157.1 1.5 12.|-- 221.183.13.150 70.0% 10 152.9 152.7 152.7 152.9 0.0 13.|-- . 20.0% 10 153.5 153.8 153.5 154.0 0.0 14.|-- . 0.0% 10 160.7 157.5 156.3 160.7 1.2 15.|-- . 0.0% 10 153.8 159.2 153.8 165.9 4.2
8、丢包及抖动测试。测试过程当中全球测试节点丢包率为零,抖动较小。

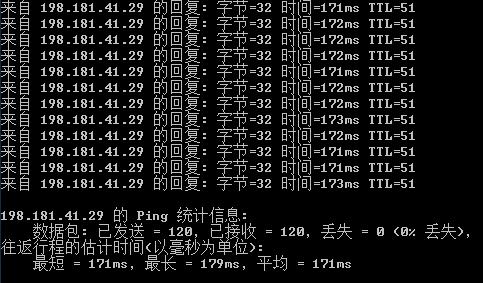

9、本地电信ping测试。

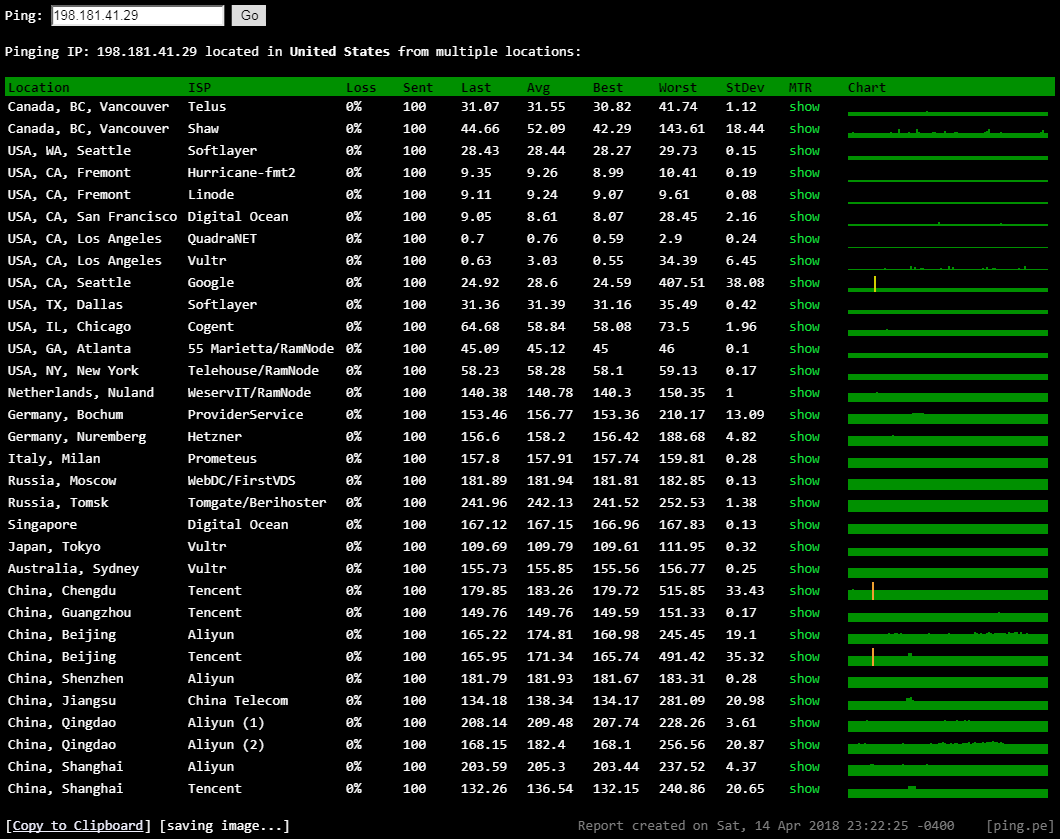

10、全国ping测试。
线路 | 节点数目 | 最快节点 | 最慢节点 | 平均响应 |
---|---|---|---|---|
全部 | 75 | 上海电信(天翼云三区) 130.2 毫秒 | 浙江金华联通 238.3 毫秒 | 169.8 毫秒 |
联通线路 | 11 | 安徽滁州(联通/电信) 138.1 毫秒 | 浙江金华联通 238.3 毫秒 | 194.2 毫秒 |
电信线路 | 39 | 上海电信(天翼云三区) 130.2 毫秒 | 云南怒江电信 206.0 毫秒 | 158.7 毫秒 |
移动线路 | 5 | 安徽合肥移动 172.2 毫秒 | 广州(移动) 183.1 毫秒 | 177.9 毫秒 |
铁通线路 | 2 | 辽宁沈阳铁通 188.3 毫秒 | 吉林长春铁通 197.1 毫秒 | 192.6 毫秒 |
东北地区 | 7 | 辽宁大连电信(蓝队网络) 167.4 毫秒 | 吉林长春铁通 197.1 毫秒 | 183.0 毫秒 |
华北地区 | 10 | 北京电信(天翼云) 154.4 毫秒 | 天津联通 202.2 毫秒 | 170.0 毫秒 |
西北地区 | 2 | 陕西宝鸡电信 161.4 毫秒 | 陕西西安电信(天翼云) 172.8 毫秒 | 167.1 毫秒 |
西南地区 | 8 | 贵州兴义电信 180.8 毫秒 | 云南怒江电信 206.0 毫秒 | 187.0 毫秒 |
华中地区 | 3 | 河南洛阳(bgp) 177.1 毫秒 | 湖北武汉(天翼云) 205.1 毫秒 | 187.9 毫秒 |
华东地区 | 31 | 上海电信(天翼云三区) 130.2 毫秒 | 浙江金华联通 238.3 毫秒 | 158.7 毫秒 |
华南地区 | 14 | 广东广州BGP(互联港湾) 155.7 毫秒 | 广东茂名(联通) 213.1 毫秒 | 174.2 毫秒 |
